Parweld Tungsten Grinder – 110V
In stock
Variable speed diamond faced disc, precision grinds 15,18, 22.5 and 30° angles on electrodes from 1.0 to 4.0mm diameter. End facing and length cutting facility.
The double sided diamond grinding disc ensures extended life and prevent tungsten contamination common with workshop grinding wheels.
Specifications
Electrode size: Ø1.0 – 4 mm
Angles: 15,18, 22.5, 30°
Motor: 110V-50/60 Hz,
Motor effect: 850W
Weight: 2.8 kg
Speed: 8,000 – 22,000 rpm
Product Information

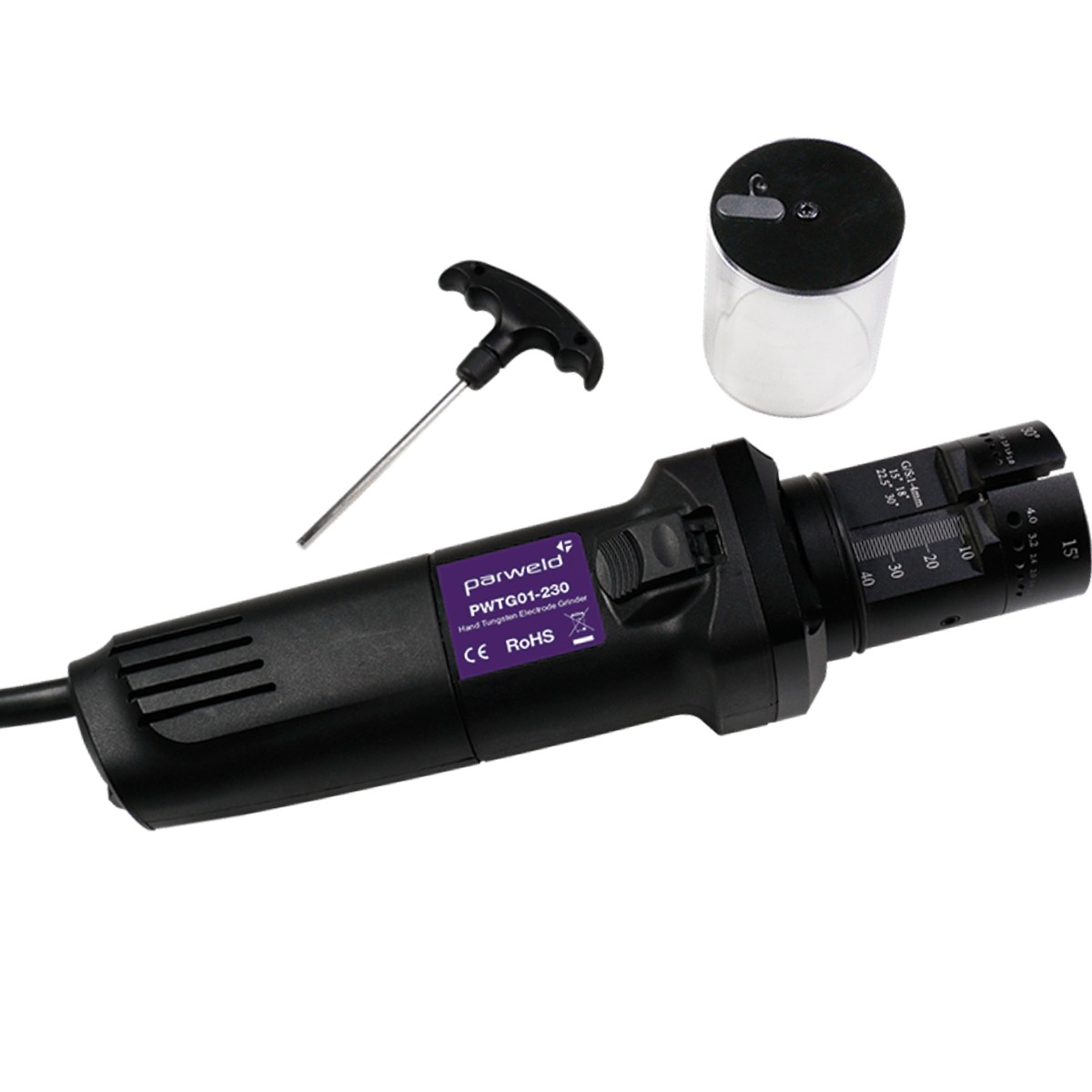

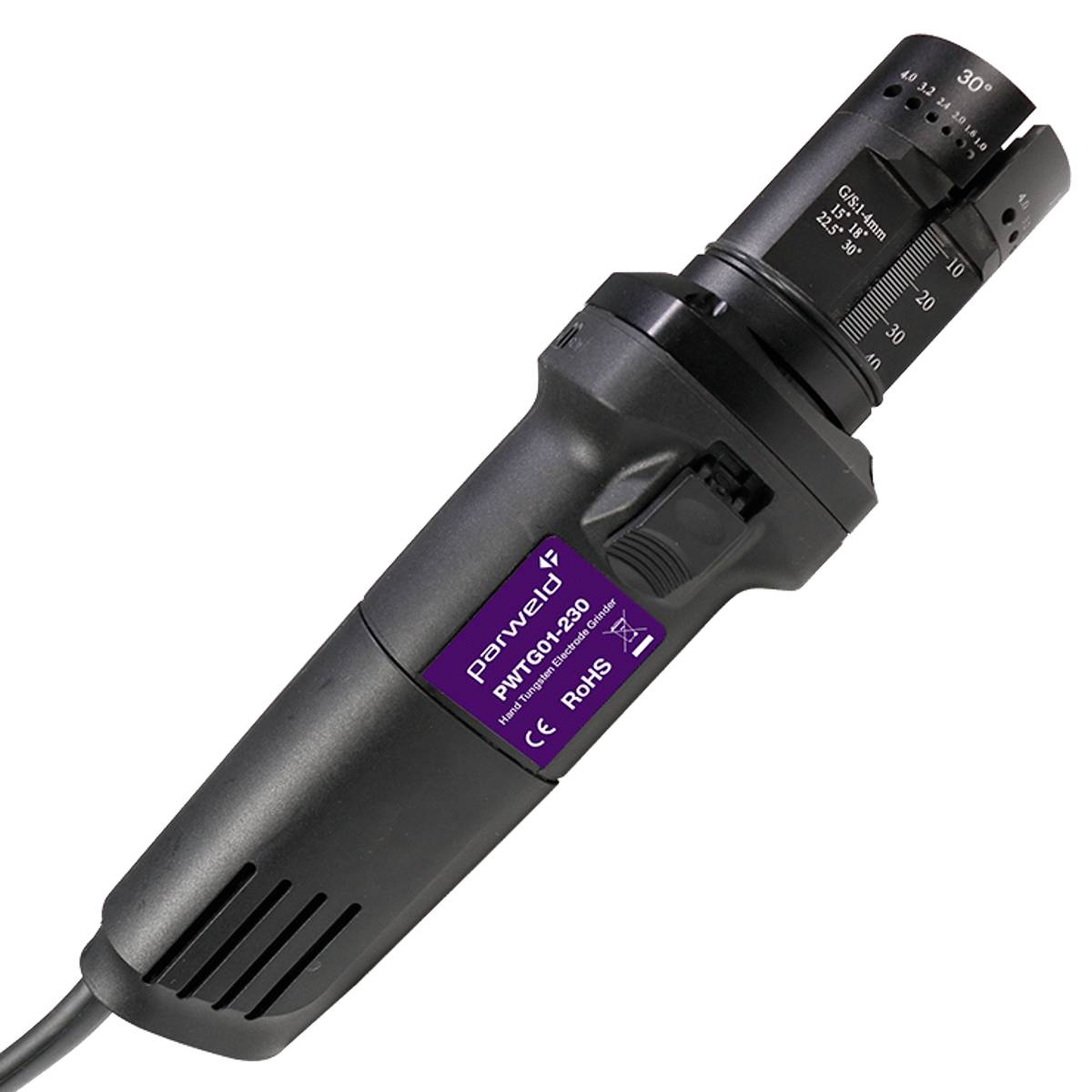

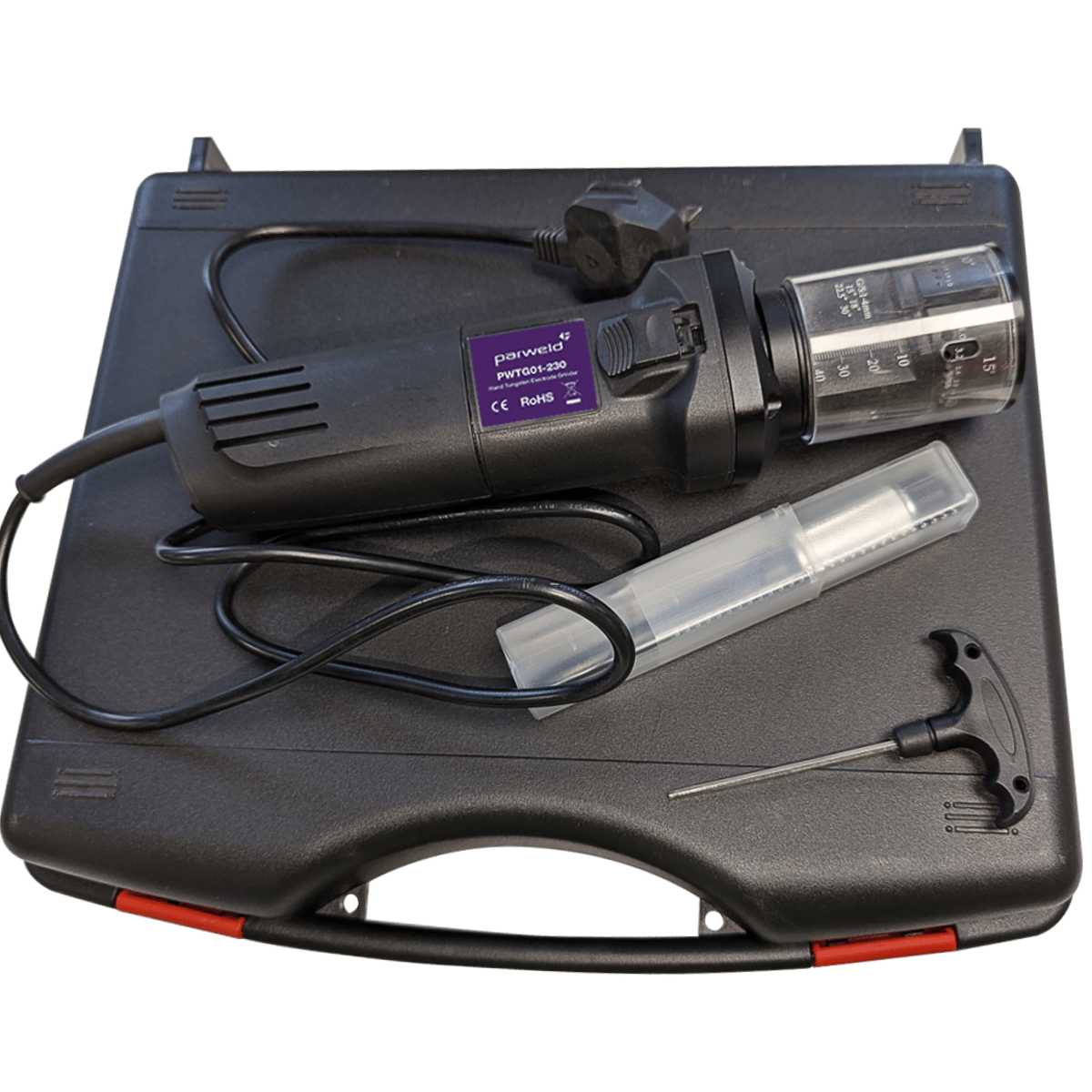

Parweld brings you the convenient Hand-Held Tungsten Electrode Grinder, a portable and efficient tool designed for sharpening tungsten electrodes used in TIG welding. This compact grinder allows welders to easily maintain and sharpen their tungsten electrodes on-site, ensuring optimal performance and arc quality.
High-Quality Double-Sided Diamond Faced Grinding Disc, with Variable Speed, provides precision grinds on various angles, ensures extended life and prevent tungsten contamination common with workshop grinding wheels.
The grinder features an adjustable angle guide, allowing you to select the desired grind angle (Angles – 15°, 18°, 22.5° and 30°) for different welding applications.
The grinder is capable of grinding Tungsten Electrodes from sizes 1.0mm to 4.0mm in diameter.
The Length Cutting Function allows for accurate trimming of Tungsten Electrodes to the desired length. Simply align the electrode with the scale on the device. With the device powered on, the grinding wheel will cut to the marked length.
The End Dressing Function allows for meticulous shaping of the Tungsten Electrode’s tip. By carefully removing excess material, this feature helps to optimize arc stability, reduce electrode wear, and improve overall welding quality.
