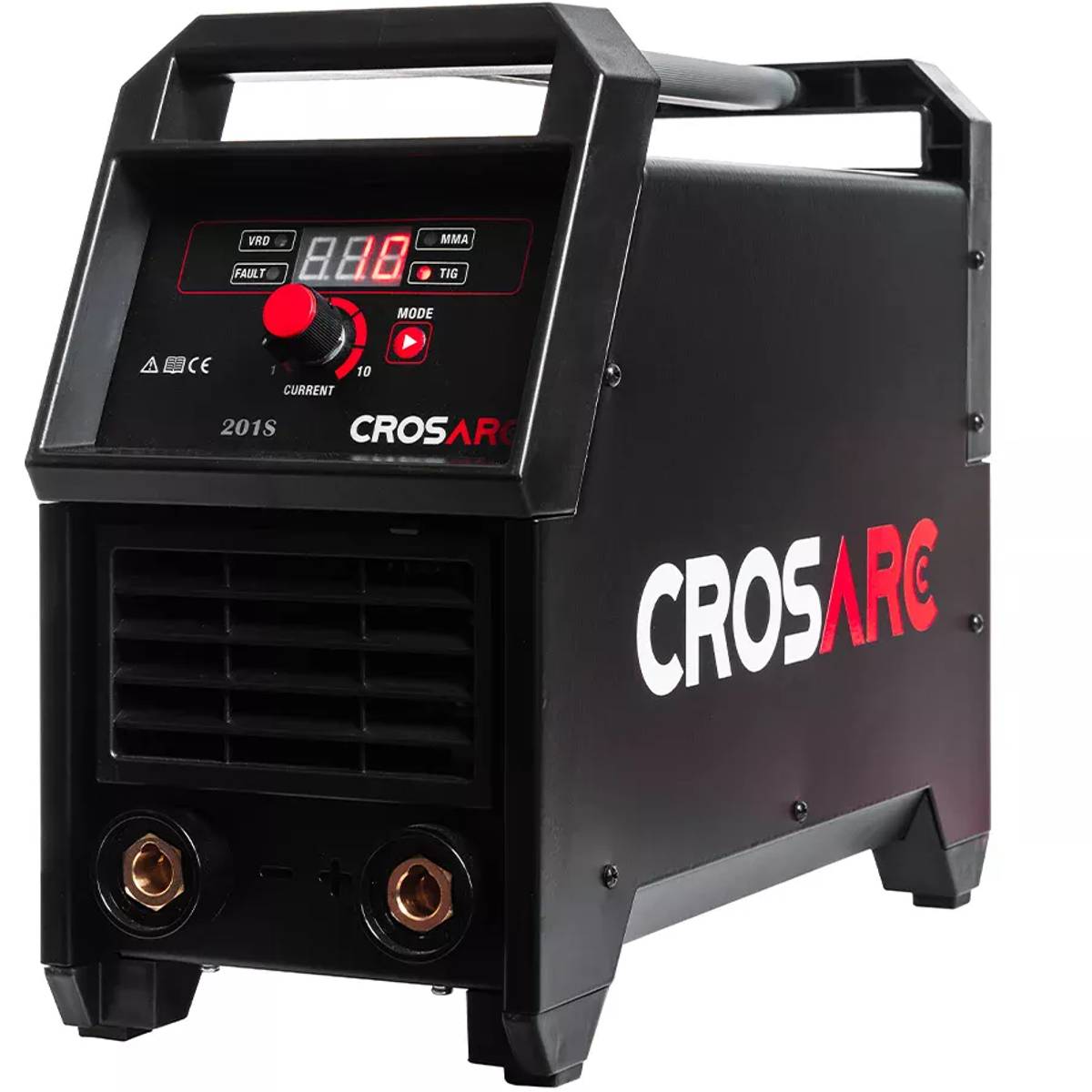

Crosarc MMA 201S Inverter Welder
In stock

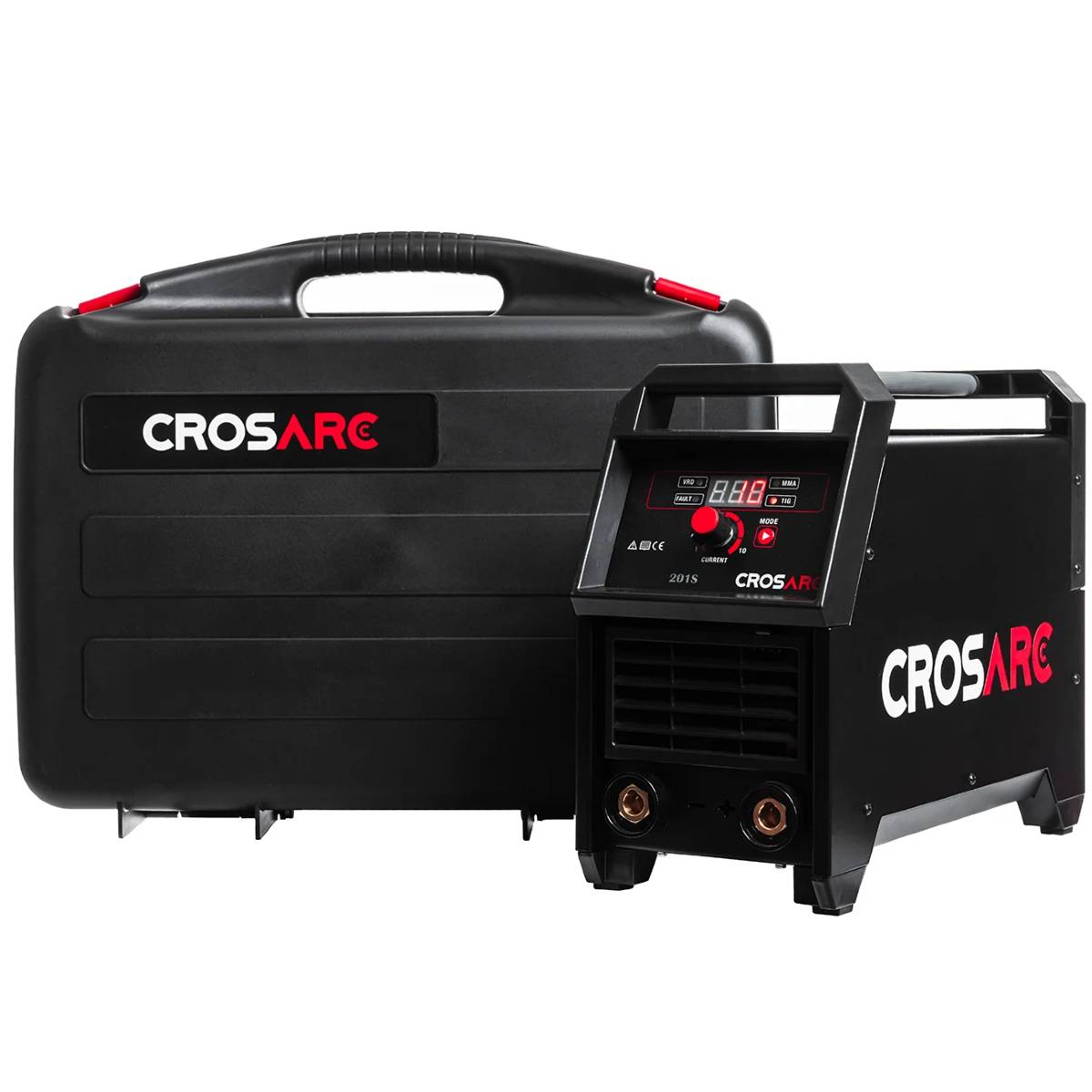

The Crosarc MMA 201S uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease. By fitting the optional TIG torch and coupling to a suitable gas supply it can be used for TIG welding and is suitable for welding steel and stainless steel. The lift TIG mode limits the arc current when the tungsten touches the work piece preventing electrode damage. Generator Friendly, the MMA 201Sis able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine has a ruggid steel housing and comes with a carring case.
Package includes:
• 161S Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• 16A Plug
Specifications
| Input Voltage | 230 V |
| Input Current 230V | 16 (A) |
| Input Current 230V | 16 (A) |
| Current Range MMA 230V | 15-200 (A) |
| Duty Cycle @ 40°C | 200A @ 25% |
| Efficiency (%) | 80 |
| Power Factor @ 100% | 0.73 |
| Protection / Insulation Class | IP21/F |
| Dimensions (mm) | 450 x 280 x 320 |
| Weight (Kg) | 12 |
| Conforms to | EN IEC 60974-10:2021 EN IEC 60974-1:20 |
Product Information
The Crosarc MMA 201S uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease. By fitting the optional TIG torch and coupling to a suitable gas supply it can be used for TIG welding and is suitable for welding steel and stainless steel. The lift TIG mode limits the arc current when the tungsten touches the work piece preventing electrode damage. Generator Friendly, the MMA 201Sis able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine has a ruggid steel housing and comes with a carring case.
Package includes:
• 161S Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• 16A Plug
