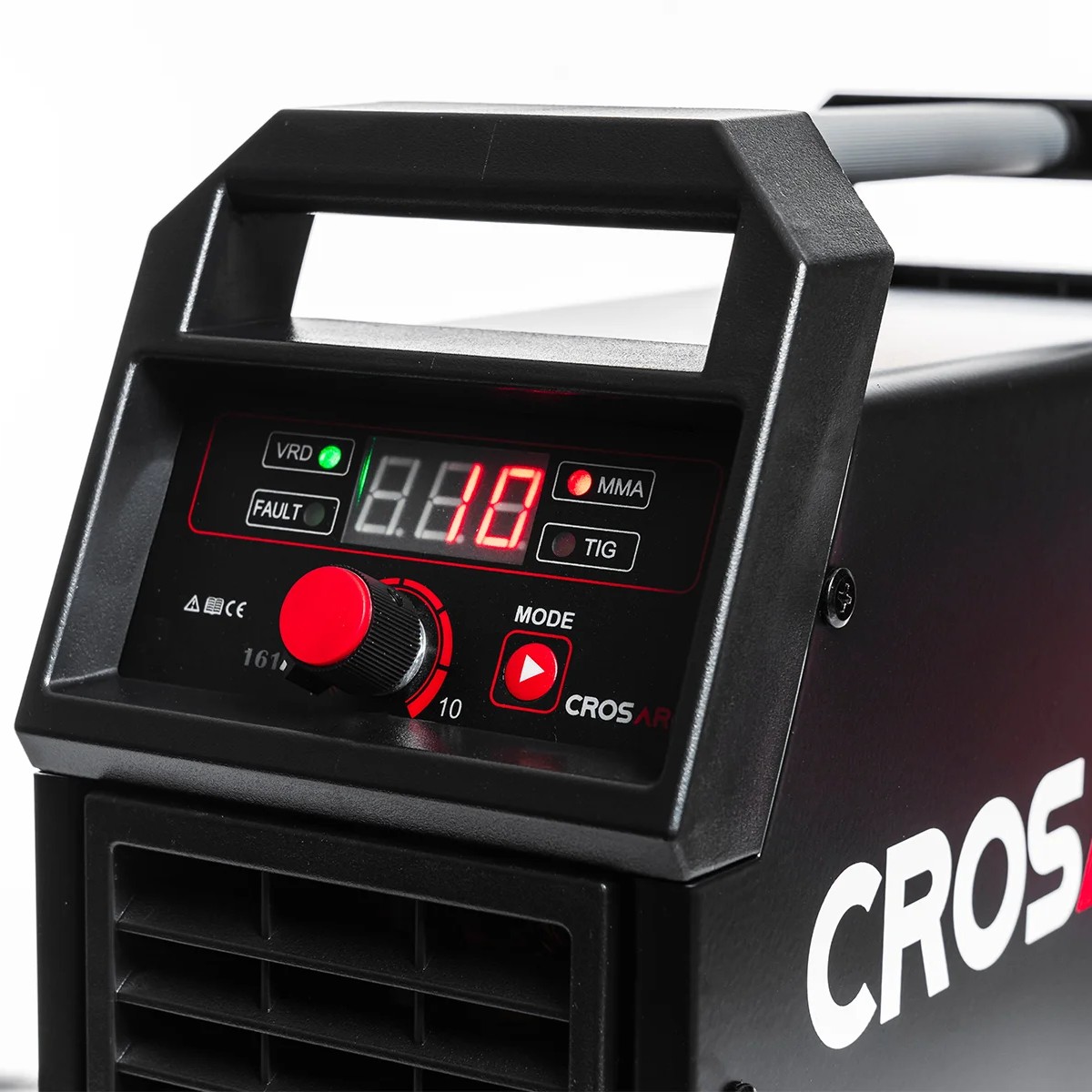

Crosarc MMA 161D Dual Voltage Inverter Welder
In stock
The Crosarc MMA 161D uses latest technology to provide a compact and reliable machine able to operate from a 110v or 230v power supply making it ideal for everyday applications. Electrodes up to 3.2mm can be used with ease. By fitting the optional TIG torch and coupling to a suitable gas supply it can be used for TIG welding and is suitable for welding steel and stainless steel. The lift TIG mode limits the arc current when the tungsten touches the work piece preventing electrode damage. Generator Friendly, the MMA 161D is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine has a ruggid steel housing and comes with a carring case.
Package includes:
• 161D Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• 13A Plug
Specifications
| Input Voltage | 100V / 230 V |
| Input Current | 110V – 32 (A) / 230V – 16 (A) |
| Current Range MMA 110v | 15-120 Amps |
| Current Range MMA 230V | 15-160 Amp |
| Duty Cycle 220v @ 30°C | 160A @ 25% |
| Duty Cycle 110v @ 30°C | 120 Amps @ 25% |
| Efficiency (%) | 80 |
| Power Factor @ 100% | 0.73 |
| Protection / Insulation Class | IP21/F |
| Dimensions (mm) | 450 x 280 x 320 |
| Weight (Kg) | 8.50 |
| Conforms to | EN IEC 60974-10:2021 EN IEC 60974-1:20 |
Product Information
The Crosarc MMA 161D uses latest technology to provide a compact and reliable machine able to operate from a 110v or 230v power supply making it ideal for everyday applications. Electrodes up to 3.2mm can be used with ease. By fitting the optional TIG torch and coupling to a suitable gas supply it can be used for TIG welding and is suitable for welding steel and stainless steel. The lift TIG mode limits the arc current when the tungsten touches the work piece preventing electrode damage. Generator Friendly, the MMA 161D is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine has a ruggid steel housing and comes with a carring case.
Package includes:
• 161D Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• 13A Plug
